Underground car park in Eschborn
PMMA surface protection systems WestWood® Wecryl OS 8 and OS 10

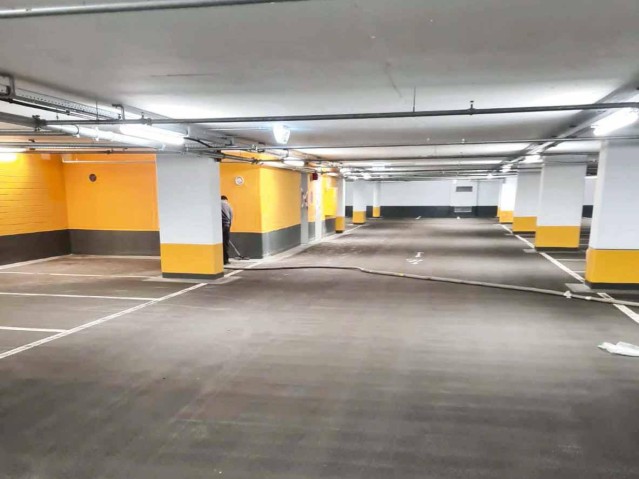

Object: Underground parking garage of an office building, Frankfurter Straße in Eschborn
Extent: approx. 7,300 m²
Subsoil: Asphalt
Period: September - November 2021
Applied: Wecryl surface protection system OS 8 (surface) and surface protection system OS 10 (ramps).
Economical coating of asphalt surfaces.

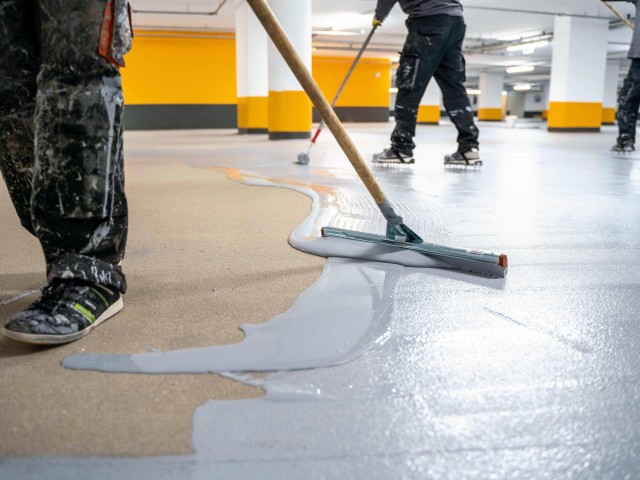

WestWood® Wecryl surface protection system OS 8 based on PMMA: It is perfectly suited for bituminous substrates and, thanks to its special Wecryl 110 primer, exhibits an optimum adhesive bond. Components such as columns and walls had already been waterproofed in advance with the fleece-reinforced Wecryl waterproofing system, and the ramps were renovated with the Wecryl surface protection system OS 10. The application of the surface coating with OS 8 completed the work on the underground car park: This resulted in an economical, long-lasting solution which, of course, also meets all fire protection requirements!
