Parking garage "Am Münster", Donauwörth
Refurbishment with the fastest OS 11 system on the market
Object: Parking garage "Am Münster", Donauwörth
Scope: Total area approx. 850 m²
Substrate: Concrete
Period: August/September 2020
Applied: WestWood Wecryl OS 11b in heavily stressed driving areas.
OS 11b for heavily frequented parking garage areas.

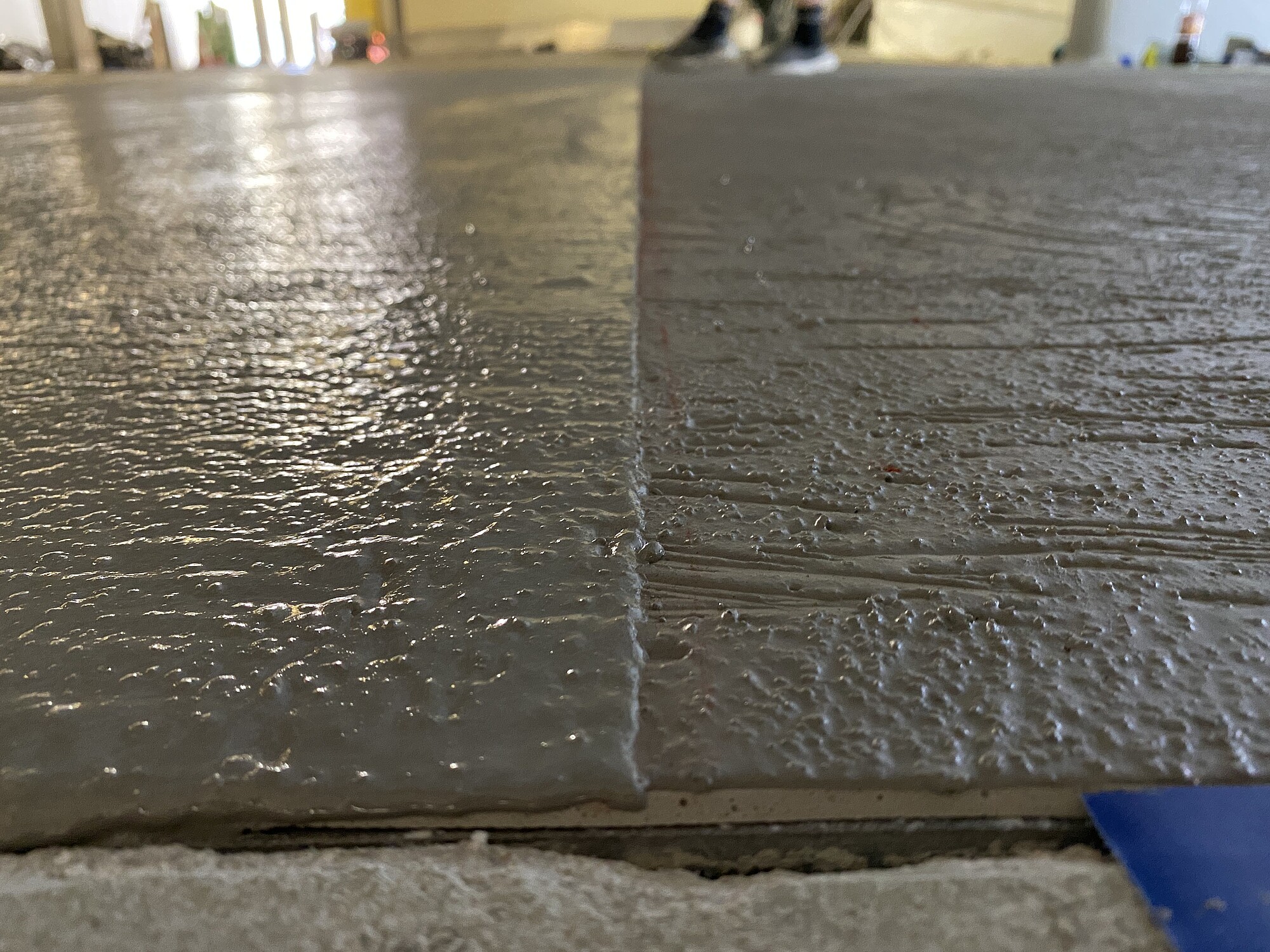

For the repair of this parking garage, two OS 11b systems were combined: a PU system for normally frequented areas and the WestWood Wecryl OS 11b for heavily frequented areas. Although an OS 11b is only recommended to a limited extent by the wider professional community for high-traffic surfaces, the use of the WestWood system is suitable precisely for these areas thanks to its excellent PMMA properties. The dynamic crack bridging properties, the high wear resistance as well as the cost effectiveness characterize this system. For maximum durability, an increased wear reserve of the wear layer was required. This was ensured by splitting the Wecryl 418 structural coating during application in two working steps. The result: a protection system perfectly matched to the requirements of the structure!
Downloads
- Wecryl OS 10 - 2.0, OS 11a, OS 11b and OS 14: System test P000462952-3 dynamic crack bridging B 4.2 Wecryl 279
- Wecryl OS 11b: System test P000462952-4 static crack bridging A 2 Wecryl 279 Wecryl 409 Quartz sand 0.7-1.2 Wecryl 409
- Wecryl surface protection system OS 11b: Classification report KB-Hoch-211322 Class Cfl-s1, here: Wecryl 419
- Wecryl surface protection system OS 11b: Product certificate 18-13103-01-C according to DIN V 18026
- Wecryl OS 11b: System test classification report fire behavior Bfl-s1 Wecryl 271 Wecryl 409 DIN EN 13501-1
- Wecryl OS 11b: System test classification report fire behavior Bfl-s1 Wecryl 279 Wecryl 409 DIN EN 13501-1
- Wecryl OS 11b: Test certificate slip-resistant property Wecryl 409 hard grain 1-3 PTV 66
- Wecryl OS 11b: Test certificate slip-resistant property Wecryl 409 hard grain 1-3 R12 V10
- Wecryl OS 11b: Test certificate slip-resistant property Wecryl 409 QS 0.7-1.2 R13 V6
- Wecryl OS 11b: TAB report TR Maintenance
- Wecryl 123 K (green): Product certificate
- Wecryl R 230: European Technical Assessment ETA-16/0812 according to EAD 030350-00-0402
- Wecryl OS 11b
- Wecryl 171: Low-viscosity primer for mineral substrates
- Wecryl 178: Primer for damp substrates
- Wecryl 123 K - Green
- Wecryl R 230 /-thix /-thix HT /-TT: Waterproofing
- Wecryl 271: Elastic surface protection layer (hwO) OS 11b
- Wecryl 279
- Wecryl 419: Textured coating Best Performance
- Wecryl 821: Substrate consolidator, ultra-low viscosity PMMA resin for mineral substrates
- Wecryl 842: Mortar for reprofiling, coarse
- Wecryl 885: Concrete replacement by hand application (PRC)
- Vlies (perforated): Special synthetic fiber fleece for sealing resins
- Nonwoven molded parts: Special synthetic fiber nonwoven for sealing resins
- Vlies: Special synthetic fiber fleece for sealing resins
- Wekat 900 catalytic converter
- WestWood 910: Setting agent, powder
- System information "PARKING - System overview"
- Handbook for specialist processors
- Product brochure Traffic "Wecryl 885 concrete replacement for manual application"
- Wecryl 171 - White
- Wecryl 178 / Wecryl 178 White
- Wecryl 123 K - Green
- Wecryl R 230 thix
- Wecryl R 230 thix HT
- Wecryl R 230 / Wecryl R 230 TT
- Wecryl 271
- Wecryl 279
- Wecryl 419
- Wecryl 409
- Wecryl 810
- Wecryl 821
- Wecryl 842 S (sand)
- Wecryl 842 H (resin)
- Wecryl 885 (resin)
- Wecryl 885 (sand)
- Wekat 900 catalytic converter
- WestWood 910
- WestWood Cleaner
